Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement

Место происхождения:	Китай	Фирменное наименование:	topsky

Подробная информация
Тип источника света:	Синий лазерный свет; фиолетовый лазерный свет	другое имя:	Медицинские изоляционные халаты
Максимальное обнаружение:	≥2.5 км (автомобиль)	Шлемы:	709,4 м/с
Поворачивать:	0-120rpm	Емкость резервуара для воды:	16л
Время реакции при обнаружении:	≤2 с возможностью обнаружения в реальном времени	Размер сверла:	4/5/6/8mm
Масса главного двигателя:	28 кг	Шлем:	≥720 м/с
ЖК-дисплей:	2.0-дюймовый дисплей Full HD	Доступность:	Доступен для покупки по всему миру
Власть:	24В	Расстояние торможения:	≤ 0,11 м
Путь управления:	Питание от батареи
Выделить:	Intrinsically Safe Infrared Thermal Imager , Real-time Detection Thermal Imaging Device , Multi-point Temperature Measurement Mine Safety Equipment

Характер продукции

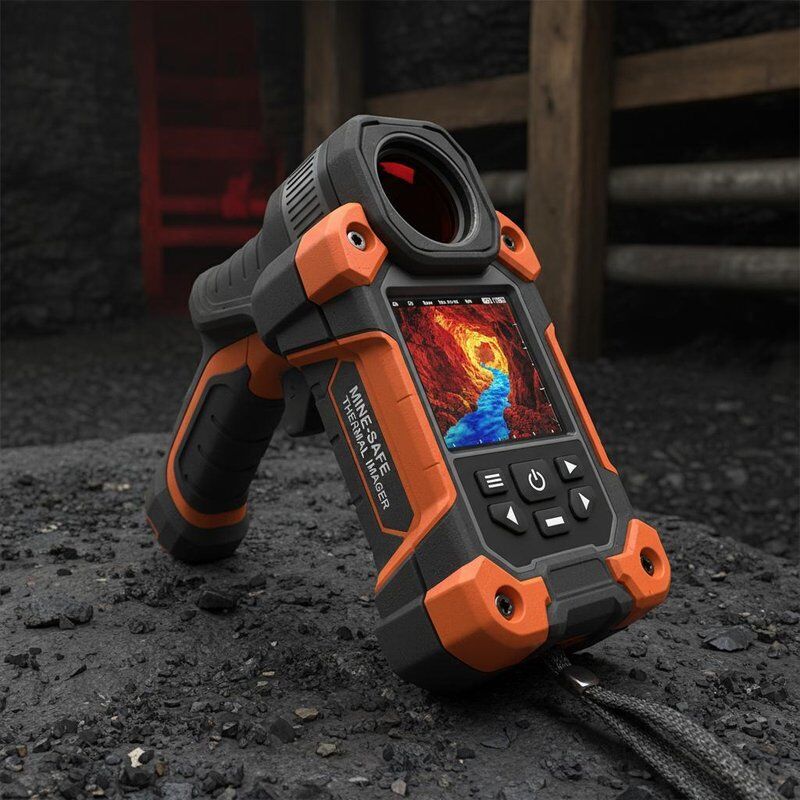

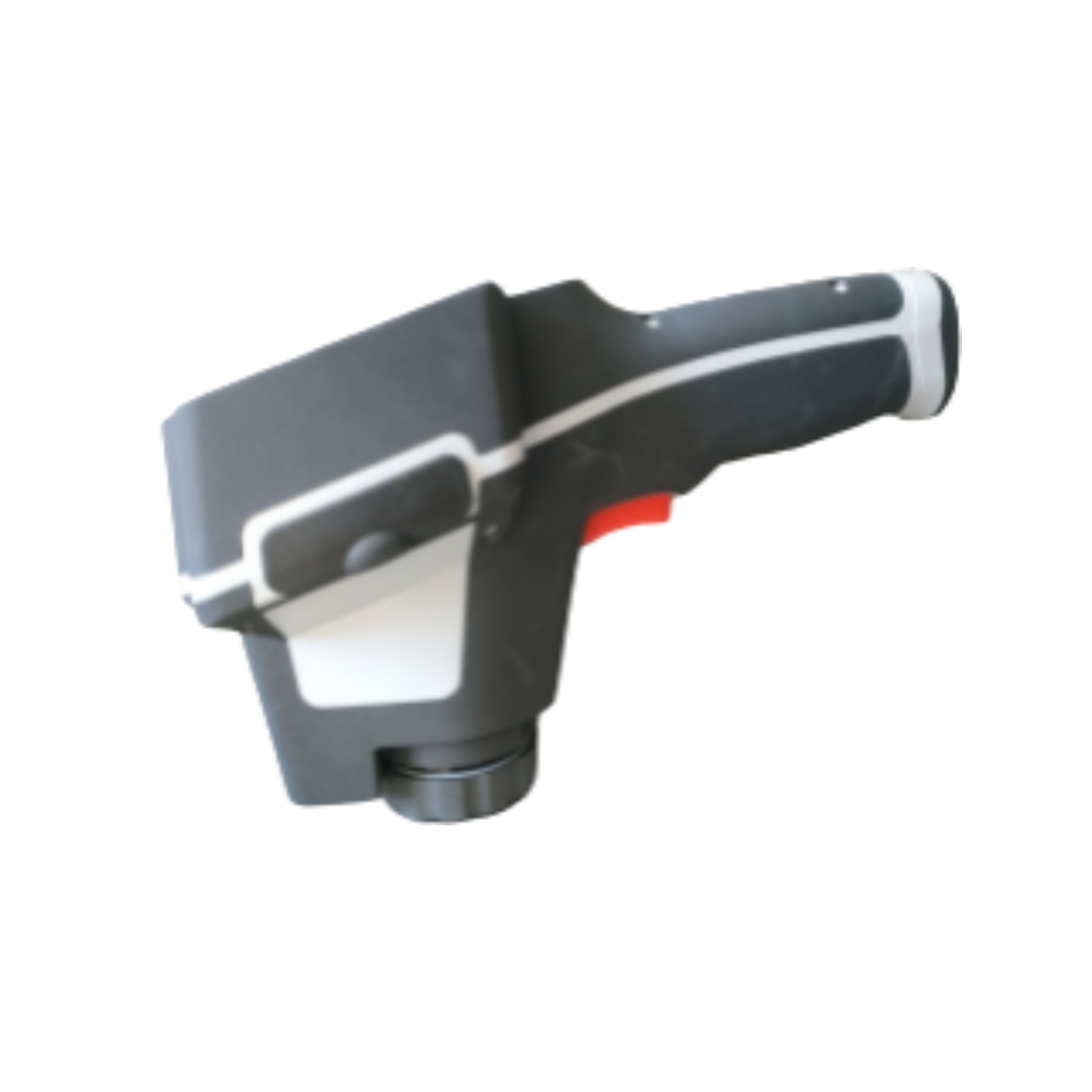

Mine-used Intrinsically Safe Infrared Thermal Imager

Product Overview

The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. It employs a non-cooled focal plane infrared detector to present infrared thermal spectrum data in high-definition, high-sensitivity pseudo-color image format with multi-point temperature measurement capability.

Images, videos, and voice recordings can be stored on a Micro SD card for in-depth computer analysis and statistical processing. Suitable for all personnel including technicians, operators, and managers in explosive hazard environments.

Key Applications

Detection of high-temperature areas and real-time temperature difference imaging
Identification of coal seam spontaneous combustion areas in ventilation work areas
Search and rescue operations for locating trapped personnel in dark conditions

Technical Specifications

Display & Resolution	Digital display with resolution ≥0.1°C, capable of indicating positive/negative values
Operating Modes	Photo mode and temperature measurement mode with photo/video recording capability
Data Management	Storage, recall, deletion, and playback functions
Temperature Measurement	Maximum, minimum, and average temperature measurement for points, lines, and surfaces
Display Options	Multiple pseudo-color and color scale display options
Alarm Functions	High-temperature alarm, low-temperature alarm, preset temperature alarm with adjustable alarm points and emissivity settings
Focusing System	Manual and automatic focusing functions
Interface Features	Background light switch, brightness adjustment, °C/°F conversion, trigger lock
Operation Interface	Physical keyboard with Chinese menu operation interface

Performance Characteristics

Repeatability: ≤0.5°C
Alarm accuracy: Alarm display value within ±1.0°C of set value
Audible alarm function when temperature exceeds preset points

Power & Safety Specifications

Battery Module	Model PL123450, rechargeable, two 1600mAh manganese oxide lithium batteries
Electrical Parameters	Maximum open-circuit voltage: 8.4V DC; Maximum short-circuit current: 1.6A
Explosion-proof Certification	Mine intrinsically safe type, explosion-proof mark: Ex ibⅠMb
Construction	ABS + silicone shell
Weight	1.0kg
Dimensions	283×103×160mm
Protection Rating	IP54
