Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement
Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement
Контакт

Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement

Место происхождения: Чиан Фирменное наименование: TOPSKY

Подробная информация
Размер продукта: 365 (Д) * 110 (Ш) * 65 мм (В) Особенность: не контакт
Размер пляжа: 73*16*50 см срок службы батареи: 2 часа
Время измерения: ≤2 секунды Давление требуемой производительности: 63Mpa
Вес насоса: 10 кг Рабочая система: Система фазового массива (азимутное фазовое сканирование)
Длина волны: 447 нм; 415 нм Использование расстояния: ≤2m
Требуется обучение: Специализированное обучение для эффективного использования Скорость: 2S
Поток высокого давления: 00,5 л/мин Оружия: 5670,7 м/с
Время реакции при обнаружении: ≤2 с возможностью обнаружения в реальном времени
Выделить:

Real-time detection infrared camera

,

Dual-light fusion thermal imager

,

High-sensitivity infrared handheld device

Характер продукции

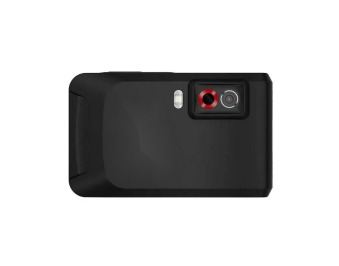

Explosion-Proof Infrared Camera
The explosion-proof infrared thermal imager is a cutting-edge handheld temperature measurement device that combines visible light imaging with infrared thermal imaging technology. Featuring advanced image processing capabilities including dual-light fusion, picture-in-picture display, and multiple pseudo-color modes, this device enables precise identification of image details and accurate temperature analysis.
Key Features
  • Continuous digital zoom from 1.0x to 4.0x
  • Video recording and capture capabilities
  • Real-time viewing and secondary analysis via mobile app and computer software
  • Wide temperature measurement range: -20°C to 550°C
  • Macro lens expansion support
  • Fusion display of thermal imaging and visible light images
  • Multiple pseudo-color display modes
  • Real-time scene temperature measurement
  • Video capture, screenshot, and media file storage
  • Wi-Fi and hotspot connectivity
Technical Specifications
Temperature Measurement Range -20°C to 550°C
Temperature Measurement Accuracy ±2°C or ±2% (whichever is greater)
Digital Zoom 1X - 4X, minimum change 0.1X
Thermal Imaging Resolution 256 × 192 pixels
Spectral Response Band 8 - 14μm
Pixel Size 12μm
Output Frame Rate ≤ 25Hz
Thermal Sensitivity ≤ 50mK @ f/1, 300K, 30Hz
Operating Temperature Range -10°C to 50°C
Extended Detection Distance 0.5m - 1.2m
Additional Features High/low temperature alarm, Wi-Fi, Bluetooth
Display Size 3.5 inches
Display Resolution 640 × 480
Visible Light Resolution 8 megapixels
Storage Capacity 16GB
LED Lighting White LED
Battery Life 4 hours
Waterproof Rating IP54

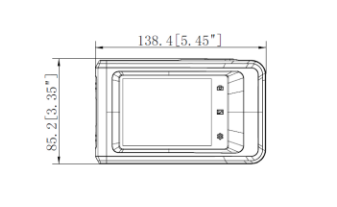

Dimensions 138.5 mm × 85.2 mm × 23.6 mm
Weight 218g
