Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
Контакт

Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range

Место происхождения: Китай Фирменное наименование: topsky

Подробная информация
Длина волны: 447 нм; 415 нм Гарантия: 5 лет
Размер пикселя: : прибл. 160 мкм. Шум: менее 30 дБ
Ряд фокуса: 0.3 м~ Вертикальная регулировка: 0-30cm
Удаленный размер: 278*184*43 мм Размер слухового аппарата: 210*100*100 мм
Защитник шеи: 850 м/с Модель: RXR-M80D
Тип сигнала тревоги: легкий звук и вибрация Размер пляжа: 73*16*50 см
Увеличьте.: 16 раз Максимальная линейная скорость: ≥1,52 м/с, пульт дистанционного управления бесстрастной скоростью
Тип продукта: Оборудование
Выделить:

4G Transmission Dust Measurement Instrument

,

0.001mg/m3 Resolution Dust Concentration Meter

,

0.001mg/m3 to 50mg/m3 Range Dust Monitor

Характер продукции

Dust Measurement Instrument
Product Overview

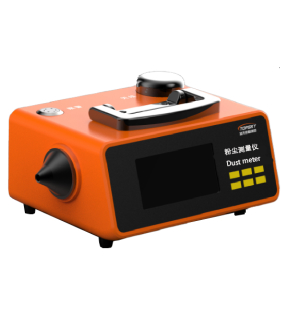

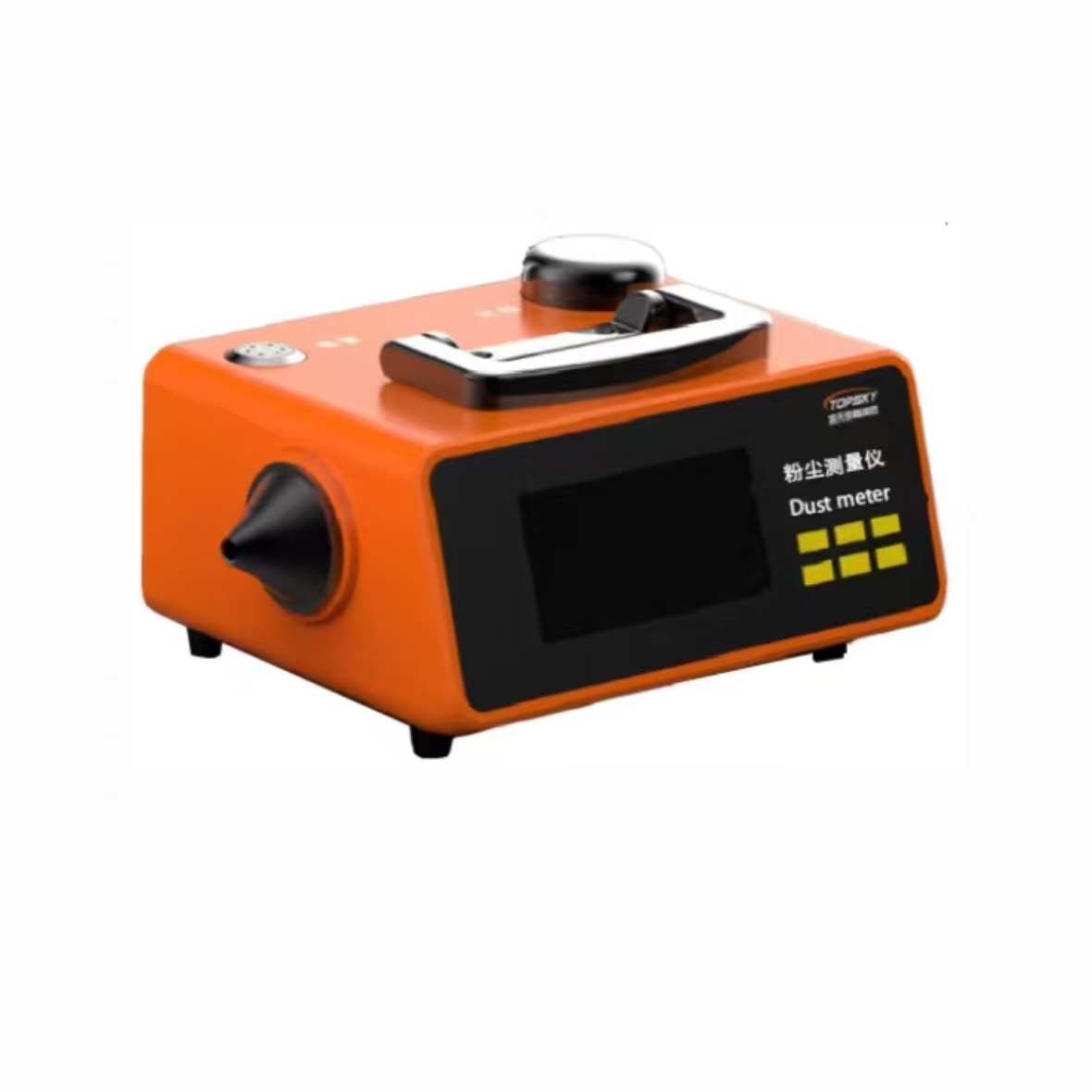

The CCZ500 dust measurement instrument is a portable, easy-to-use device that provides direct readings of dust concentration. Utilizing advanced light scattering technology with an infrared laser and imported photomultiplier tubes, it converts scattered light intensity into electrical signals to calculate mass concentration. This instrument features:
  • Fast, accurate measurements with high sensitivity
  • Stable performance with strong load capacity
  • Low susceptibility to optical path dust accumulation
  • Configurable alarm thresholds with audible/visual alerts
  • 4G data transmission for real-time monitoring
  • Compliant with MT163-1997, JJG846-2015, GB 20964-2007, and GB3836.4-2010 standards
Key Features
  • ★ Lightweight: Compact and portable design for easy measurement
  • ★ Efficient: Direct reading with one-button operation and 1-minute results
  • ★ High Precision: Resolution of 0.001mg/m³
  • ★ Automatic Alarm: Customizable threshold alerts
  • ★ Data Processing: Scheduled sampling with TWA calculation
  • ★ Networking: 4G transmission for real-time data visualization
  • ★ Maintenance-free: No cleaning required for sensor module
  • ★ Integrated: Durable, reliable design with attractive appearance
Technical Specifications
Dust Measurement Instrument
Measurement Range ★ 0.001mg/m³ ~ 50mg/m³ (accuracy 0.001mg/m³)
★ 0.01mg/m³ ~ 150mg/m³ (accuracy 0.01mg/m³)
Relative Error ★ ≤ 10%
Measurement Time 1 minute (standard measurement time)
Alarm Function ★ Built-in with customizable concentration settings
Data Storage ★ Up to 9999 data sets
Calculations ★ Automatic time-weighted average (TWA)
Network Function ★ 4G transmission of dust concentration, temperature, humidity, and GPS data
Display 4.3-inch LCD screen
Working Time ≥ 6 hours
