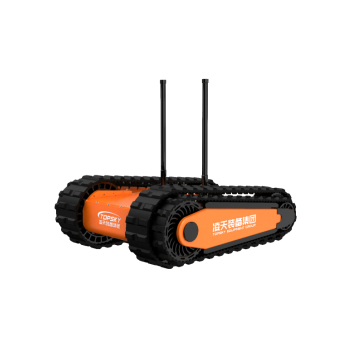

Small Single Arm Tracked Robot Chassis with 10 Inch Touch Screen and Wireless Transmission for Counter Terrorism

Фирменное наименование:	TOPSKY

Подробная информация
Энергопотребление:	0.6W	Выходное напряжение:	12 В
Размер слухового аппарата:	210100100 мм	Датчик:	1/2,5-дюймовый сенсор CMOS
Радиус:	20-50 м, при интенсивности поля -80 дБм	Пробивная способность:	дерево 70мм; стальной лист 3мм
Козырька:	519 м/с	Объектив:	170 градусов
Скорость:	20s	Угол:	120Degree
взвешивать:	15,5 кг	Внутренняя модуляция:	DDS или аналог
Скорость передачи данных:	≥0,2 раза/с	Уровень защиты:	Высокий уровень защиты от террористических угроз
Использование:	Операции по борьбе с терроризмом
Выделить:	10 Inch Touch Screen Tracked Robot Chassis , Single Arm Tracked Robot Chassis , Wireless Transmission Tracked Robot Chassis

Характер продукции

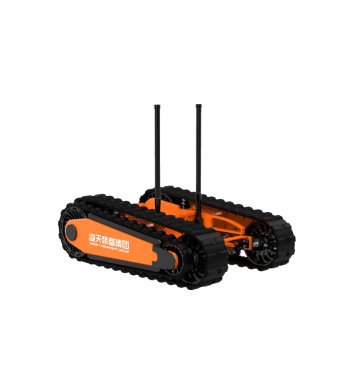

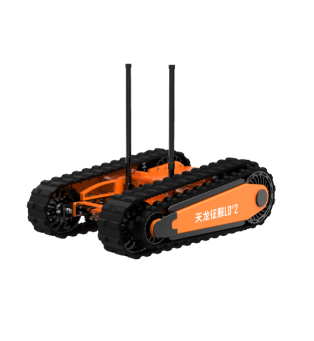

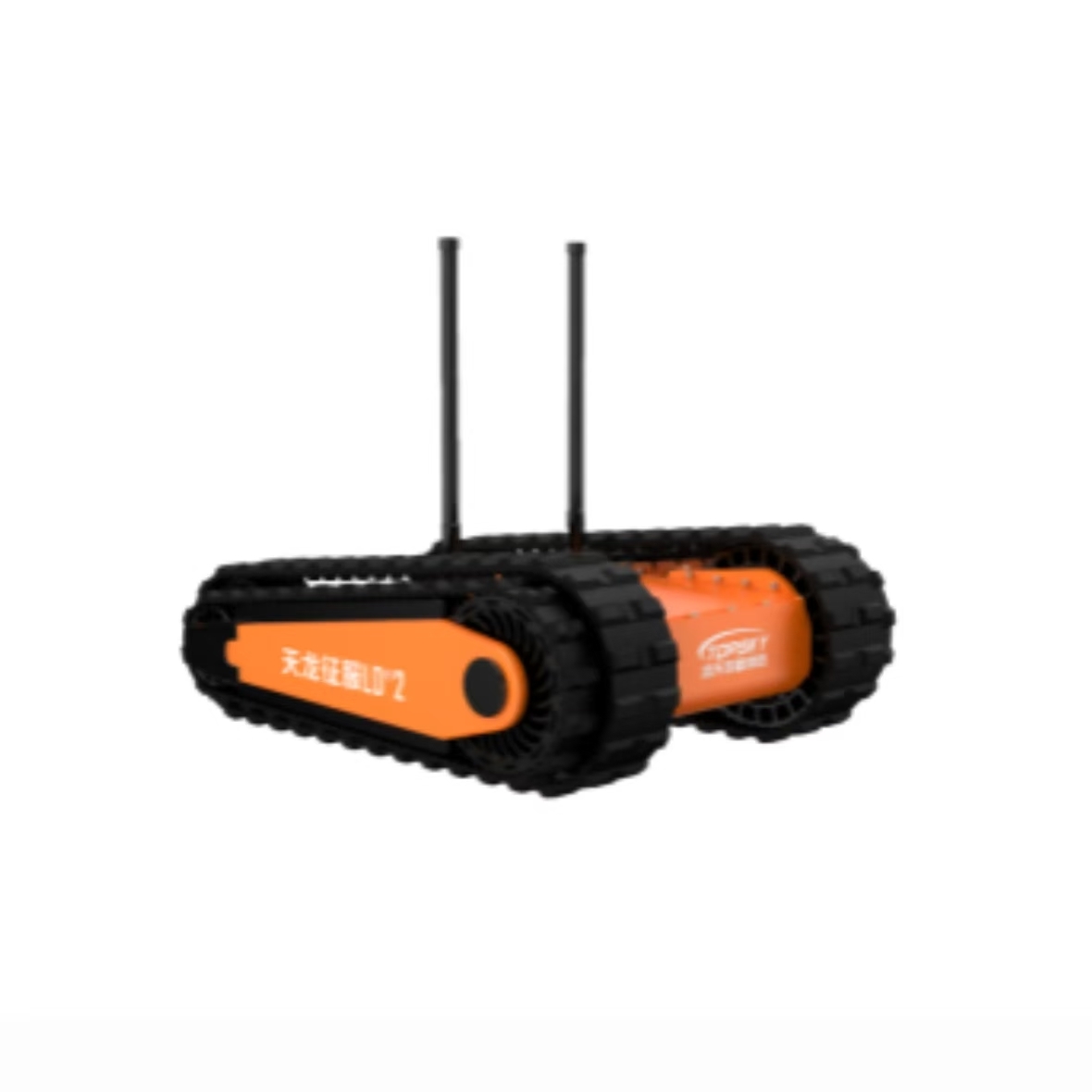

Small Single Arm Tracked Robot Chassis

Product Overview

Main functions: Designed to replace human operators in hazardous environments including flammable, explosive, or complex conditions for environmental reconnaissance and gas detection operations. Capable of accessing confined spaces such as under vehicles and shelving.
Application scenarios: Toxic gas facility inspection, forest reconnaissance, earthquake response, mine collapse assessment.
System options: Configurable with gas detection module, thermal imaging, autonomous navigation, LiDAR, voice communication, and cloud management platform.

Scope of Application

Application Type	Use Cases
Reconnaissance	Urban fire assessment, forest fire monitoring
Rescue Operations	Earthquake response, mine rescue, structural collapse, traffic incident response

Product Features

10-inch touch screen: High-definition anti-glare display with photo/video capture, storage, and playback capabilities
Wireless transmission: Supports WiFi, hotspot, and 4G connectivity
Thermal imaging: Temperature measurement with false color switching, configurable resolution, and lens options for varying distances and detection requirements

Multi-Gas Detection Capabilities

Substance	Detection Range
Methane	0-100% VOL
Carbon Dioxide	0-5% VOL
Carbon Monoxide	0-5000ppm
Nitrogen Dioxide	0-50ppm
Ammonia	0-100ppm
Oxygen	0-30% O2
Humidity	0-100RH
Temperature	-20°C to 100°C
